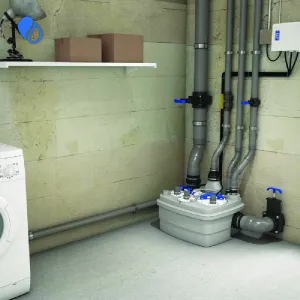

SFA Sanicubic 2 Macerator Pump

The Sanicubic 2 operation is as simple as the installation. The effluent enters the pump through one of five different inlets – one on either side of the unit at the bottom and three along the top. The inlets can accommodate 1-1/2” or 4” diameter pipes. As soon as the wastewater level reaches the trigger point, the pumping system activates. The effluent is then pumped out through 1-1/2” diameter rigid pipe connected on the top of the pump. Maximum pumping distances are 36 Ft vertically and/or 328 Ft horizontally.

Brand

SFA

Number of motor(s)

Single motor

Voltage (V)

220-240

Shut-off head (ft)

45

Frequency (Hz)

60

Motor power (hp)

2 x 1

Diameter of upper inlet (inch)

1-1/2

Possible connections

Sink, Shower/bathtub, Washing machine(direct connection)

Type of impeller

Grinder

Capacity (gal)

12.4

Max. horizontal discharge (ft)

328
